Trade Show Canopy Tents

Trade Show Canopy Tents

À propos du projet

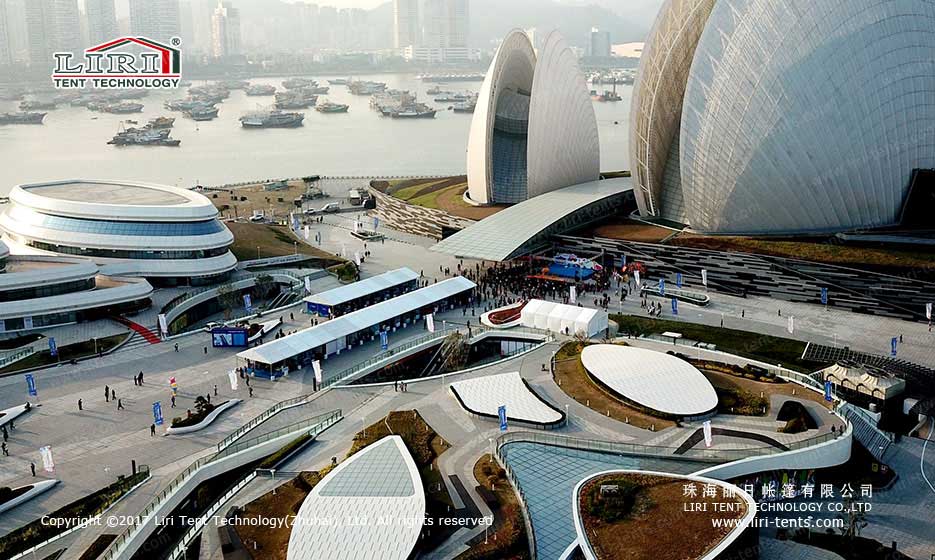

Recently, the opening ceremony of the 2017 Guangdong International Tourism and Culture Festival was held at a large drama theater. And Liri Tent was the temporary structural show tents supplier of this fair.

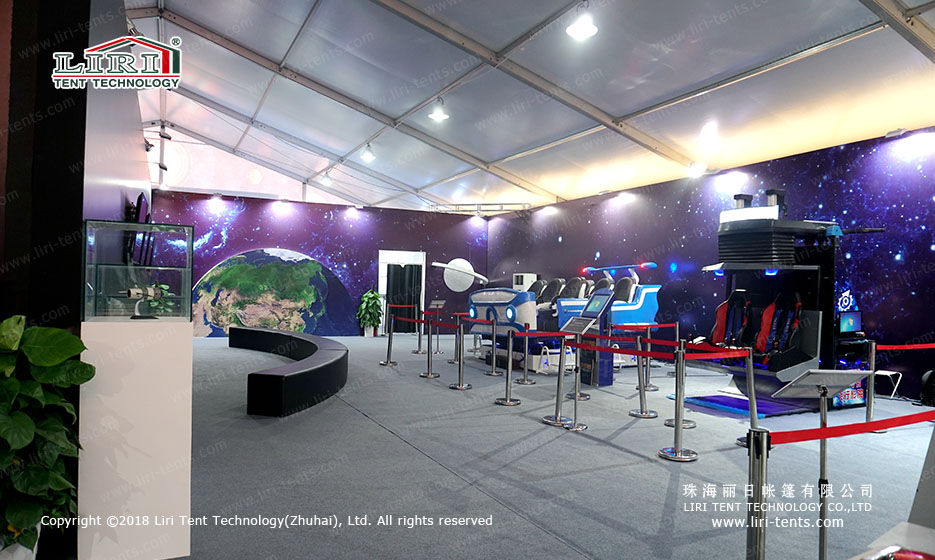

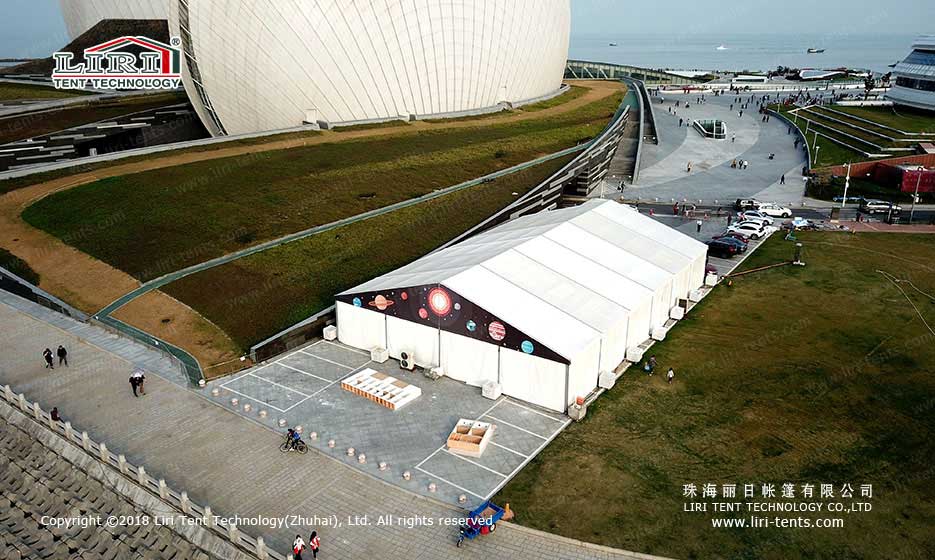

Liri Tent built up a series of show tents as temporary booths in the theater open-air square. The online and offline exhibition exhibitors use them for advertising, to provide tourists with concessional tourism products.

For a successful cultural event, it may be necessary to quickly expand the venue in the short term to meet the needs of the exhibition. In addition to ensuring the smooth running of the exhibition, it should consider whether the tent matches the original architectural forms or not, and synthetically plan its form and function. Therefore, the trade show canopy tent for this tourism festival to create a unique landscape.

As more and more large-scale exhibitions being held now, carrying out the exhibition around the landmark buildings is people’s first choice. It raises the level of the activity, and achieve a better propaganda effect. Therefore the trade show canopy tent becomes more and more popular nowadays, not only it’s easy to install and dismantle, but also it’s reusable, show tent is the essential choice for all kinds of temporary venues.

Exhibition Tent Series Specifications
Largeur de portéeHauteur de l'avant-toitHauteur du faîteDistance entre travéesProfil principal
8m3.3m4.53m5m152x119x3.5mm (4 - channel)
10m3.3m4.85m5m152x119x3.5mm (4 - channel)
10m4m5.55m5m152x119x3.5mm (4 - channel)
12m3.3m5.16m5m152x119x3.5mm (4 - channel)
12.5m3.3m5.29m5m152x119x3.5mm (4 - channel)
15m3.3m5.62m5m152x119x3.5mm (4 - channel)
15m4m6.32m5m152x119x3.5mm (4 - channel)
16m3.3m5.72m5m152x119x3.5mm (4 - channel)
18m3.3m6.01m5m152x119x3.5mm (4 - channel)
Fonctionnalité

Montants du châssis : aluminium extrudé sous haute pression 6061/T6 (15HW).

Fabric cover: high quality double PVC-coated polyester textile; 100% waterproof; flame retardant to DIN4102 B1, M2, CFM; UV resistant, tear resistant, self-cleaning ability, etc.

Raccord : acier robuste galvanisé à chaud

Plage de températures admissibles : -30 degrés Celsius à +70 degrés Celsius

Charge due au vent : 100 km/h max.

Charge de neige : 75 kg/m² (la neige ne peut pas s'accumuler si la pente du toit est très prononcée)

Facile à monter et à démonter

Pas de montant à l'intérieur, espace intérieur disponible : 100%.
