60m x 100m Indoor Basketball Court

Modular Commercial Indoor Basketball Court

À propos du projet

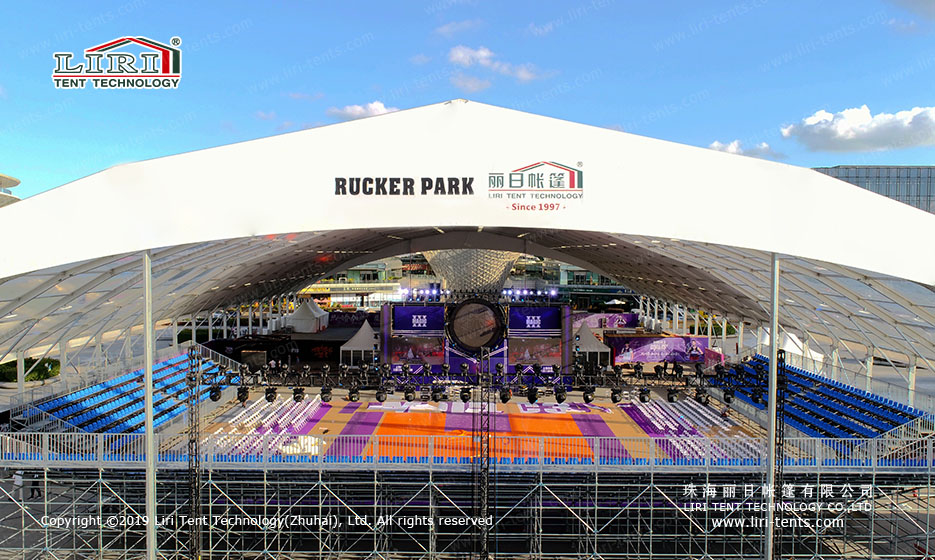

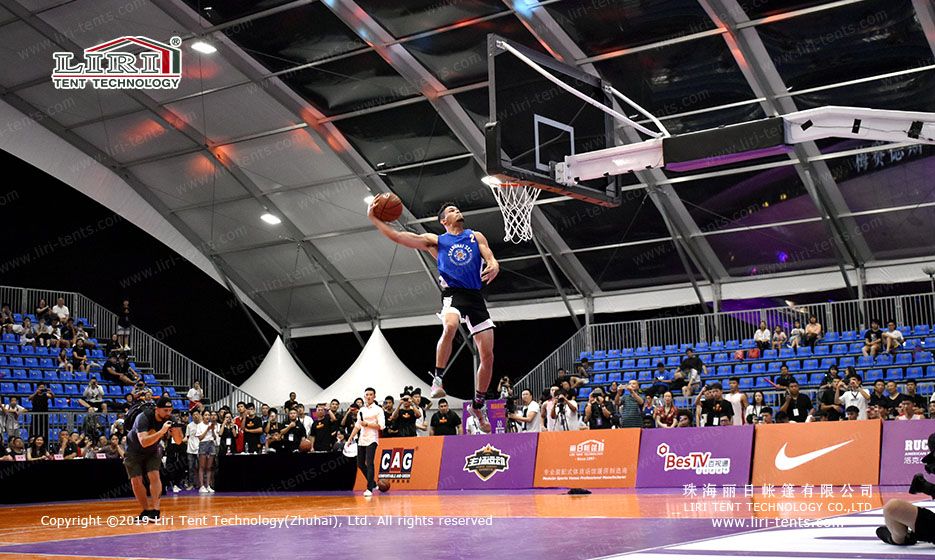

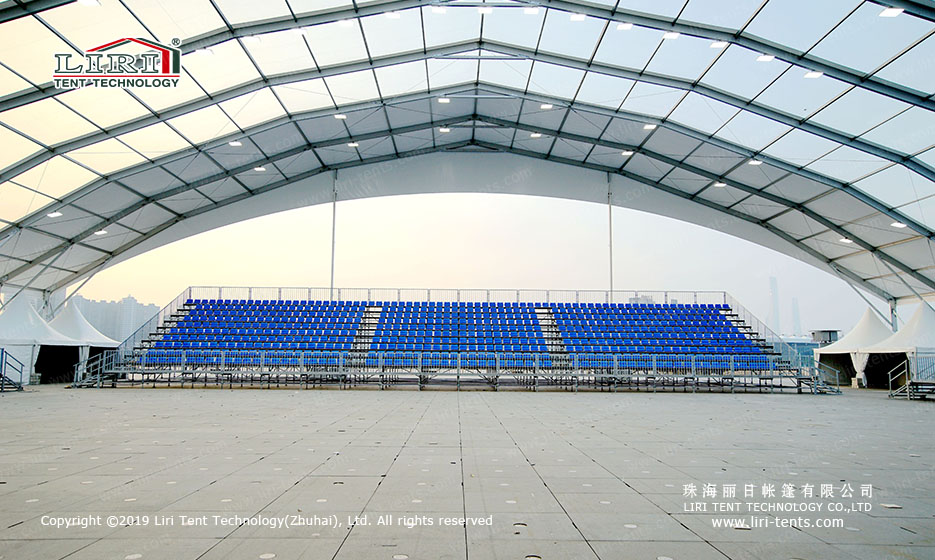

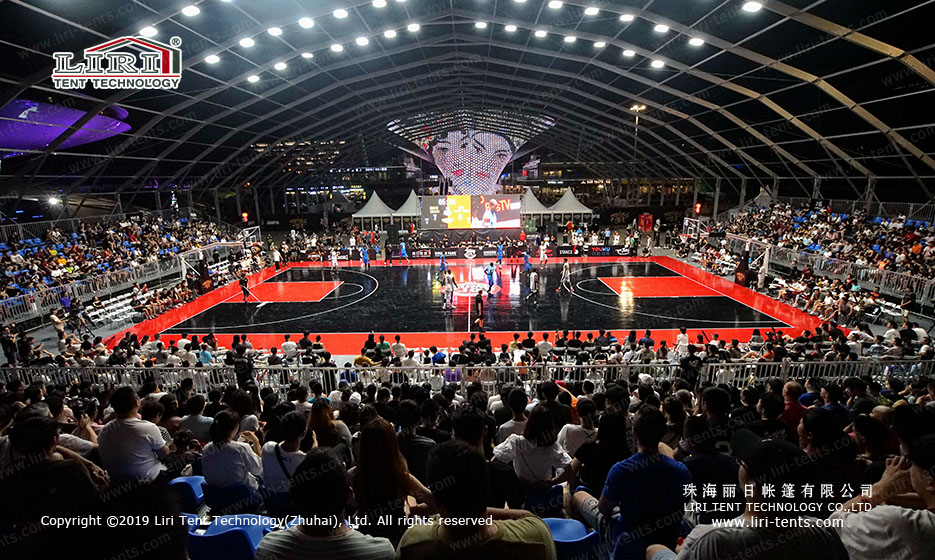

In the 60m x 100m indoor basketball court, wonderful dun ks from time to time, more than 3000 seats in grandstand are full filled this time. It is comparable to the NBA competition.

Due to the typhoon crossing, the 2019 JUMP 10 World Street ball Grand Prix was also deeply influenced. For the safety of the players and the fans who came to watch the game, the organizers had to move to the indoor stadium for 2 days. Liri tent and the organizers always pay close attention to the typhoon trend and weather changes. Finally, we hope that the good weather would arrive as scheduled. The finals would be held in the prepared 60-meters indoor basketball court, and we would do our best to give the fans a good view of the game.

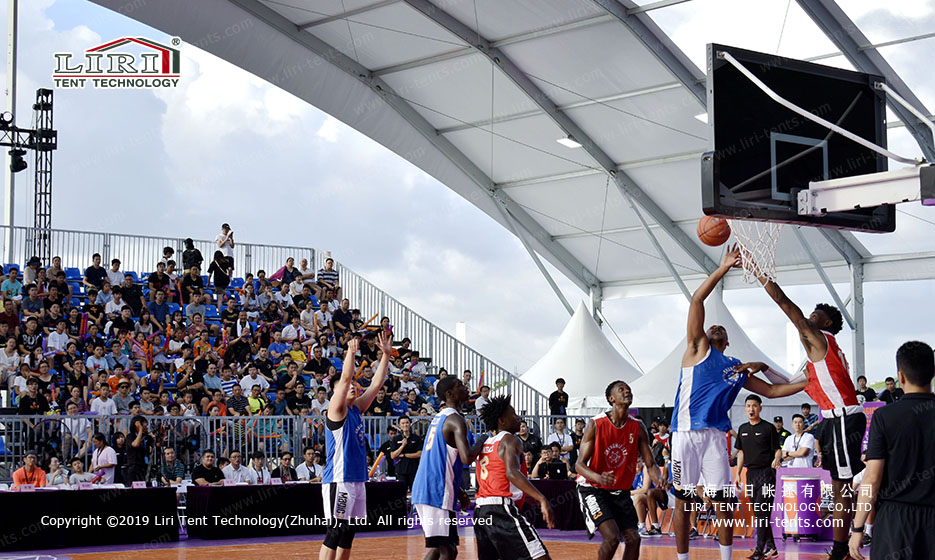

Although the force majeure of typhoon weather,the aluminum alloy indoor basketball court is enough to prove that high-strength typhoon confirm its wind resistance ability. The super typhoon did not destroy it, which proved the wind resistance ability and durable quality of the tente destinée aux événements sportifs.

Polygon Huge Tent Series Specifications
Largeur de portéeHauteur de l'avant-toitHauteur du faîteDistance entre travéesProfil principal
10 m4 m7,16 m5 m204 x 120 x 4 mm (4 canaux)
12 m4 m7.4m5 m204 x 120 x 4 mm (4 canaux)
15 m4 m8.75m5 m204 x 120 x 4 mm (4 canaux)
18 m4 m9.15m5 m204 x 120 x 4 mm (4 canaux)
20 m4 m9.42m5 m204 x 120 x 4 mm (4 canaux)
25 m4 m11.72m5 m256 x 121 x 5 mm (4 canaux)
30 m4 m13.2m5 m256 x 121 x 5 mm (4 canaux)
40 m4 m15.4m5 m300 x 120 x 5 mm (4 canaux)
50 m4 m16 m5 m300 x 120 x 5 mm (4 canaux)
60 m4 m17 m5 m400x120x7mm (4 - channel)
80m6 m
21.5m
5 m500x150x7/8mm (4 - channel)
Fonctionnalité

Profilés de structure : aluminium extrudé 6061/T6 (15HW) haute résistance

Fabric cover: high quality double PVC-coated polyester textile; 100% waterproof; flame retardant to DIN4102 B1, M2, CFM; UV resistant, tear resistant, self-cleaning ability, etc

Raccord : acier robuste galvanisé à chaud

Plage de températures admissibles : -30 degrés Celsius à +70 degrés Celsius

Charge due au vent : 100 km/h max.

Charge de neige : 75 kg/m² (la neige ne peut pas s'accumuler si la pente du toit est très prononcée)

Facile à monter et à démonter

Aucun poteau intérieur, espace intérieur disponible à 100 %
