Field Hospital Tent Introduce

À propos du projet

The spread of the epidemic has led to insufficient hospitals. Expansion hospitals and solving medical problems have become the primary issues. Liri Rescue Tent can produce prefabricated aluminum alloy pipes at the factory in advance and transport them to the site. They can quickly deploy the solutions of medical tents, field hospitals and square cabin hospitals. The hospitals can be built and put into use in 1-3 days at the earliest, improving the speed of medical rescue.

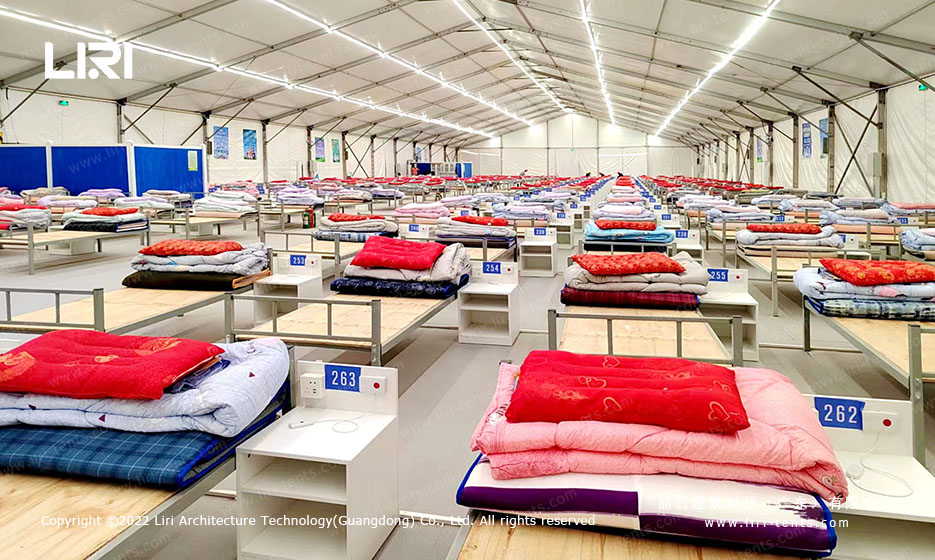

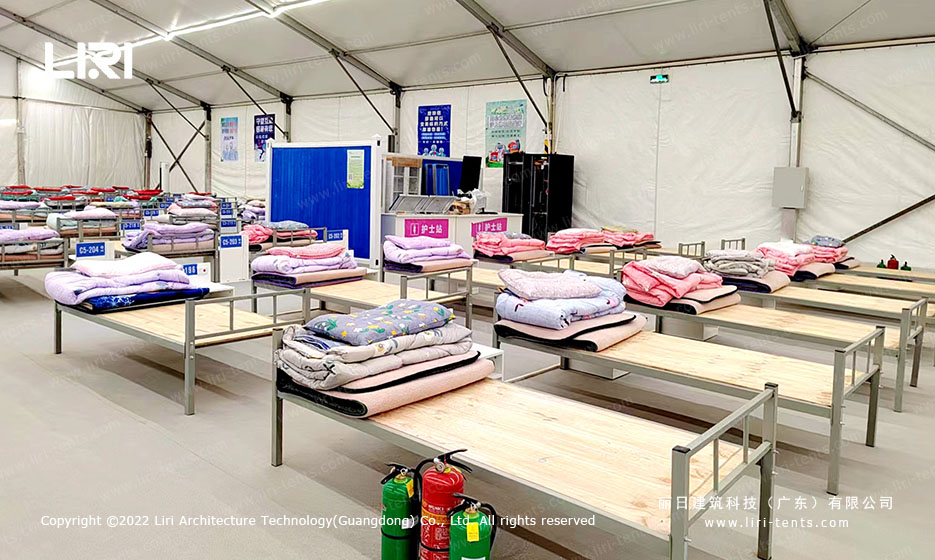

The quickly assembled rescue Field Hospital Tent can be freely divided inside to become a separate room. And it can also provide a collective isolation resting area to ensure the safety and rest of medical staff.

Medical Tents Series Specifications
Largeur de portéeHauteur de l'avant-toitHauteur du faîteDistance entre travéesProfil principal
3 m2,6 m3,16 m3 m100 x 48 x 3,0 mm (4 canaux)
4 m2,6 m3,35 m3 m100 x 48 x 3,0 mm (4 canaux)
5 m2,6 m3,52 m3 m100 x 48 x 3,0 mm (4 canaux)
6 m2,6 m3,71 m3 m100 x 48 x 3,0 mm (4 canaux)
8 m2,6 m4,05 m3 m100 x 48 x 3,0 mm (4 canaux)
9 m2,6 m4,24 m3 m100 x 48 x 3,0 mm (4 canaux)
10 m2,6 m4,4 m3 m100 x 48 x 3,0 mm (4 canaux)
12 m
2,6 m4,76 m3 m100 x 48 x 3,0 mm (4 canaux)
Fonctionnalité

Profilés de structure : aluminium extrudé 6061/T6 (15HW) haute résistance

Fabric cover: high quality double PVC-coated polyester textile; 100% waterproof; flame retardant to DIN4102 B1, M2, CFM; UV resistant, tear resistant, self-cleaning ability, etc

Raccord : acier robuste galvanisé à chaud

Plage de températures admissibles : -30 degrés Celsius à +70 degrés Celsius

Charge due au vent : 100 km/h max.

Charge de neige : 75 kg/m² (la neige ne peut pas s'accumuler si la pente du toit est très prononcée)

Facile à monter et à démonter

Aucun poteau intérieur, espace intérieur disponible à 100 %
