Série de petites tentes de gala
- Informations générales
Gala Tent (GT series) are available in clear-span width of 10m,12m, and 15m, all with a standard side height 3 m. Gala marquee are modular design and can be extended or decreased in 5m section. The main frameworks (upright support and roof beam)are manufactured by 4 channel in size 166x88x3mm, hard pressed extruded Aluminium . The sidewalls and roof covers of gala tent are manufactured of 850g/m2 PVC-coated polyester textile, flame retardant to DIN4102 B1,M2. The fabric are available in block-out or translucent.
GT marquee series are available with a complete range of accessories including sidewalls with clear windows, ground anchors ,weight plate, lining, glass wall system, glass door units, ABS walling system, full clear covers& sidewalls, flooring system, and rain gutters system.
Ce produit a obtenu un brevet national, numéro de brevet : ZL201120397654.4
For more information please contact us!
- Fiche technique du produit

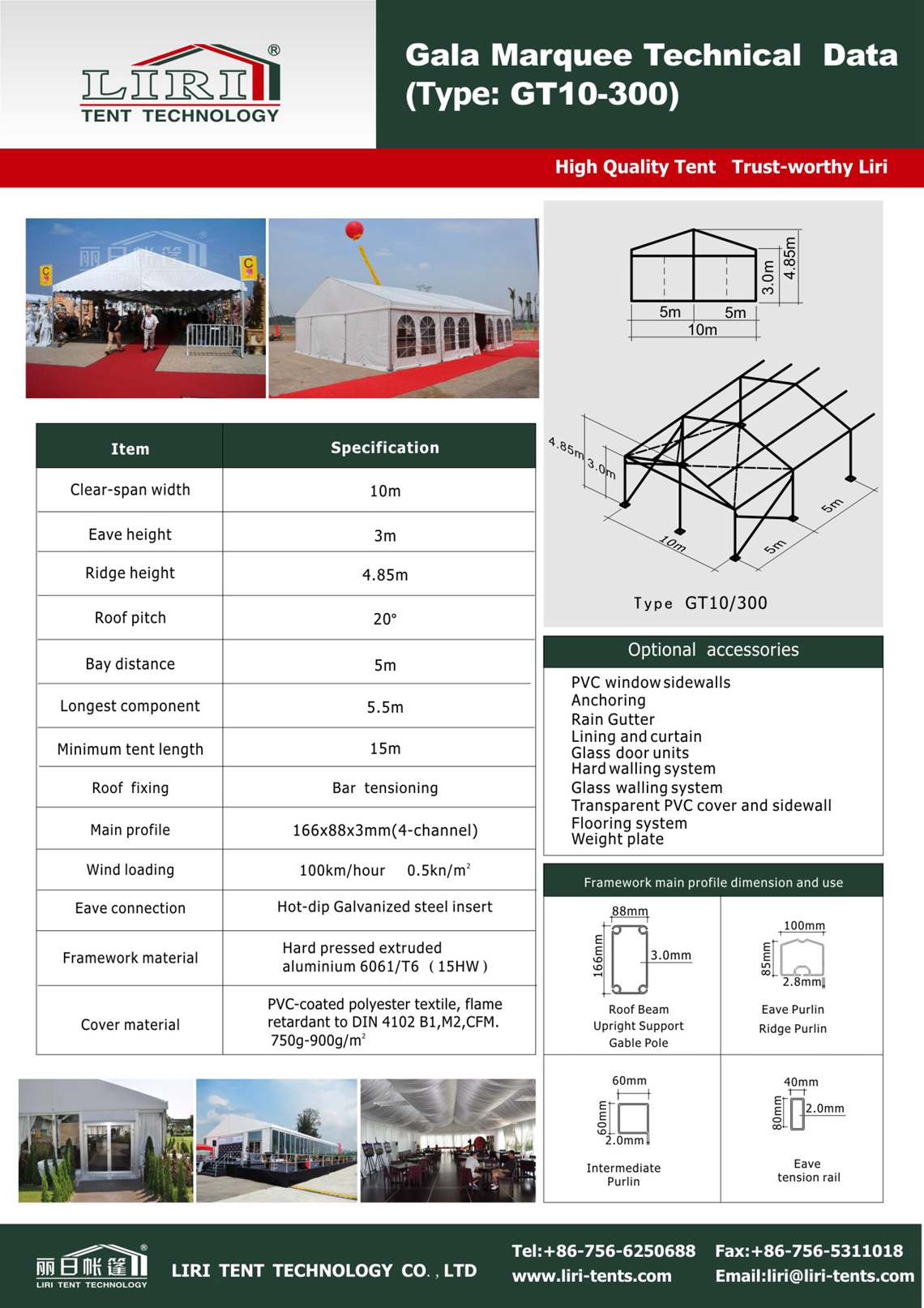

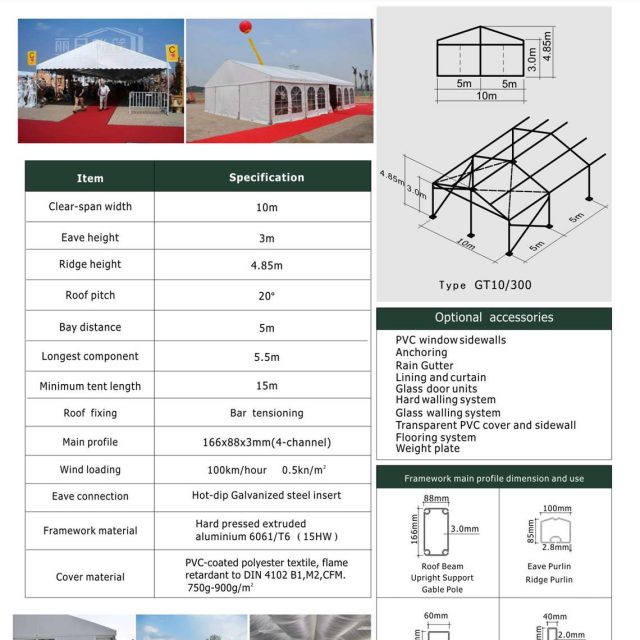

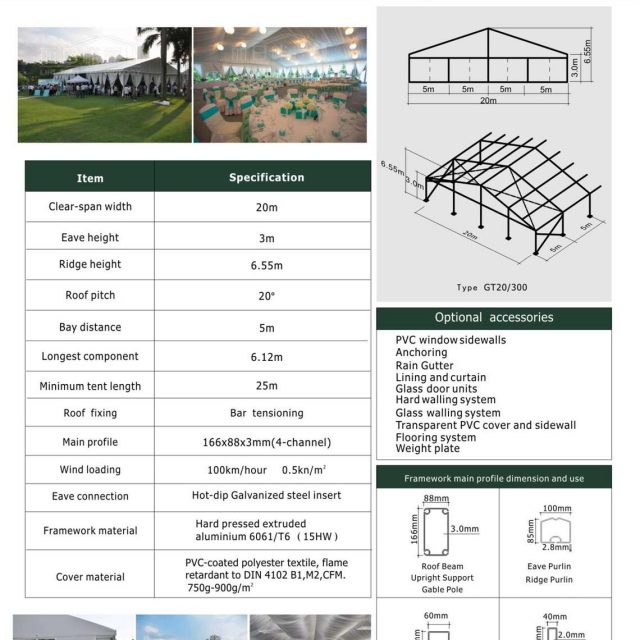

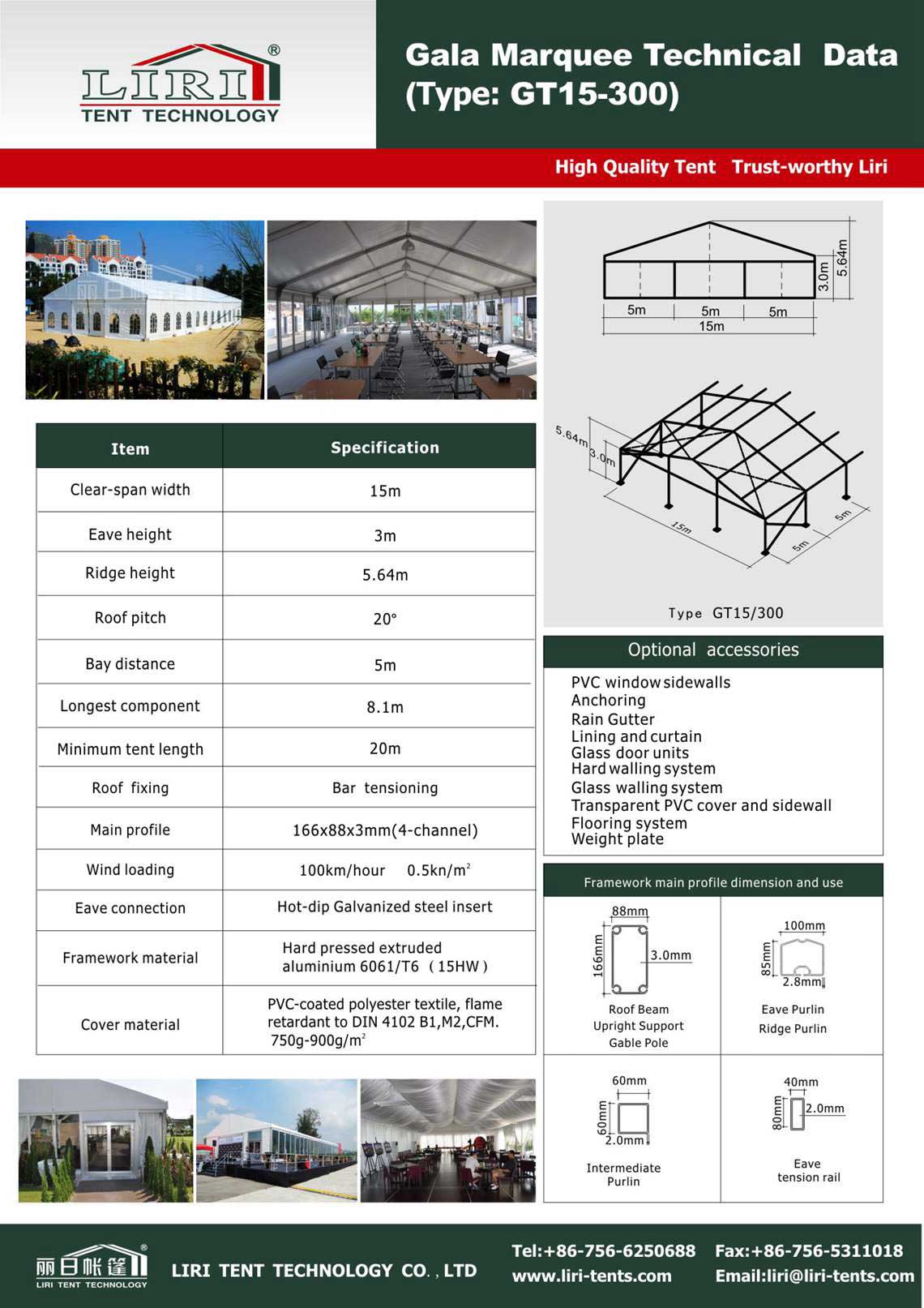

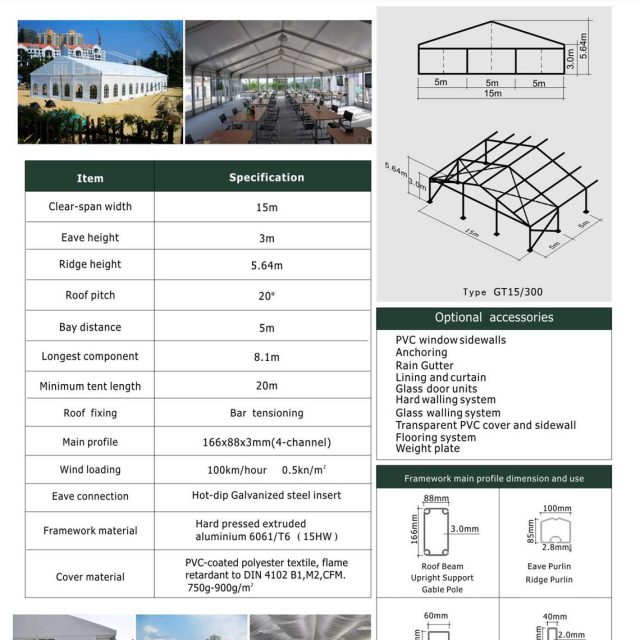

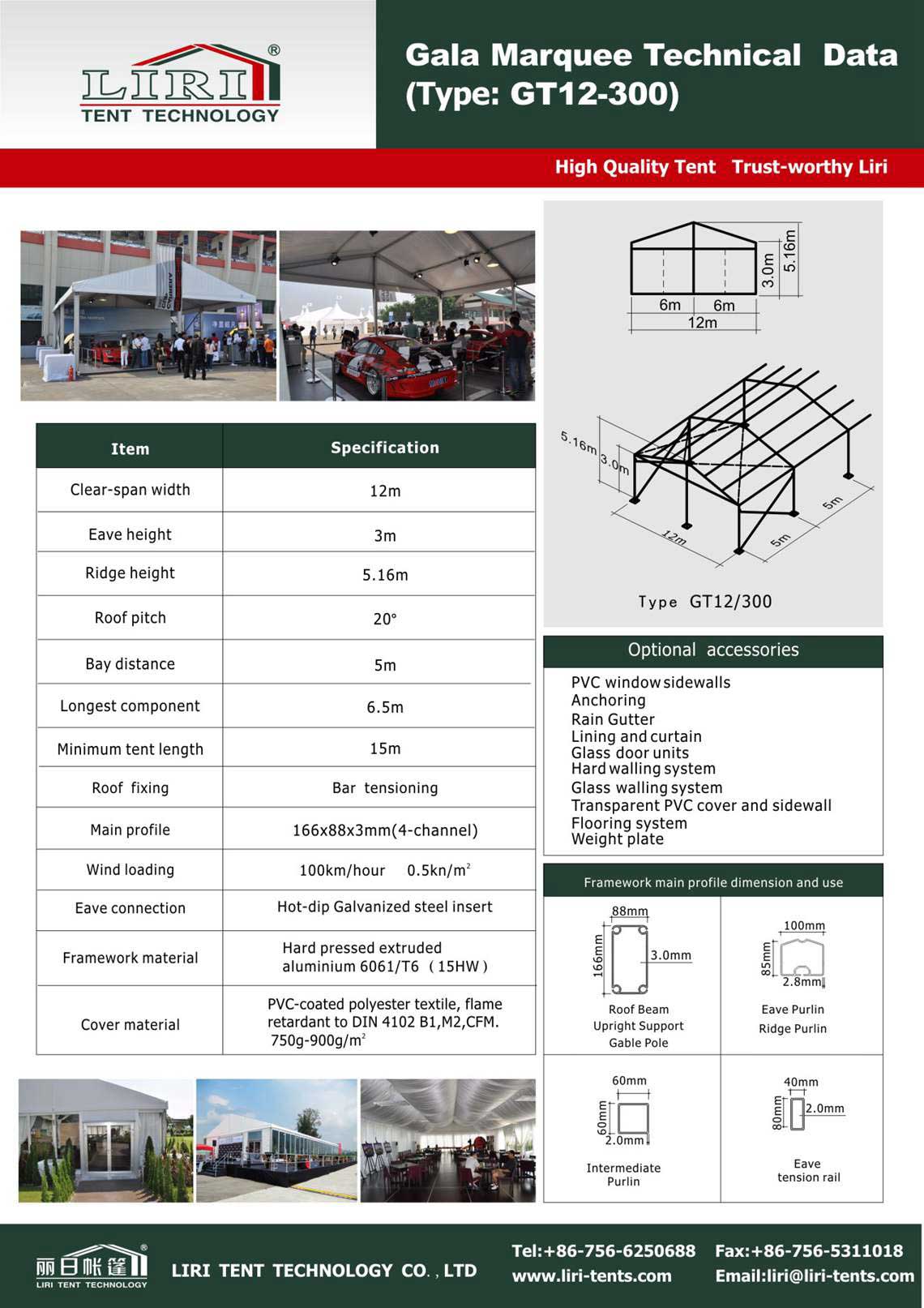

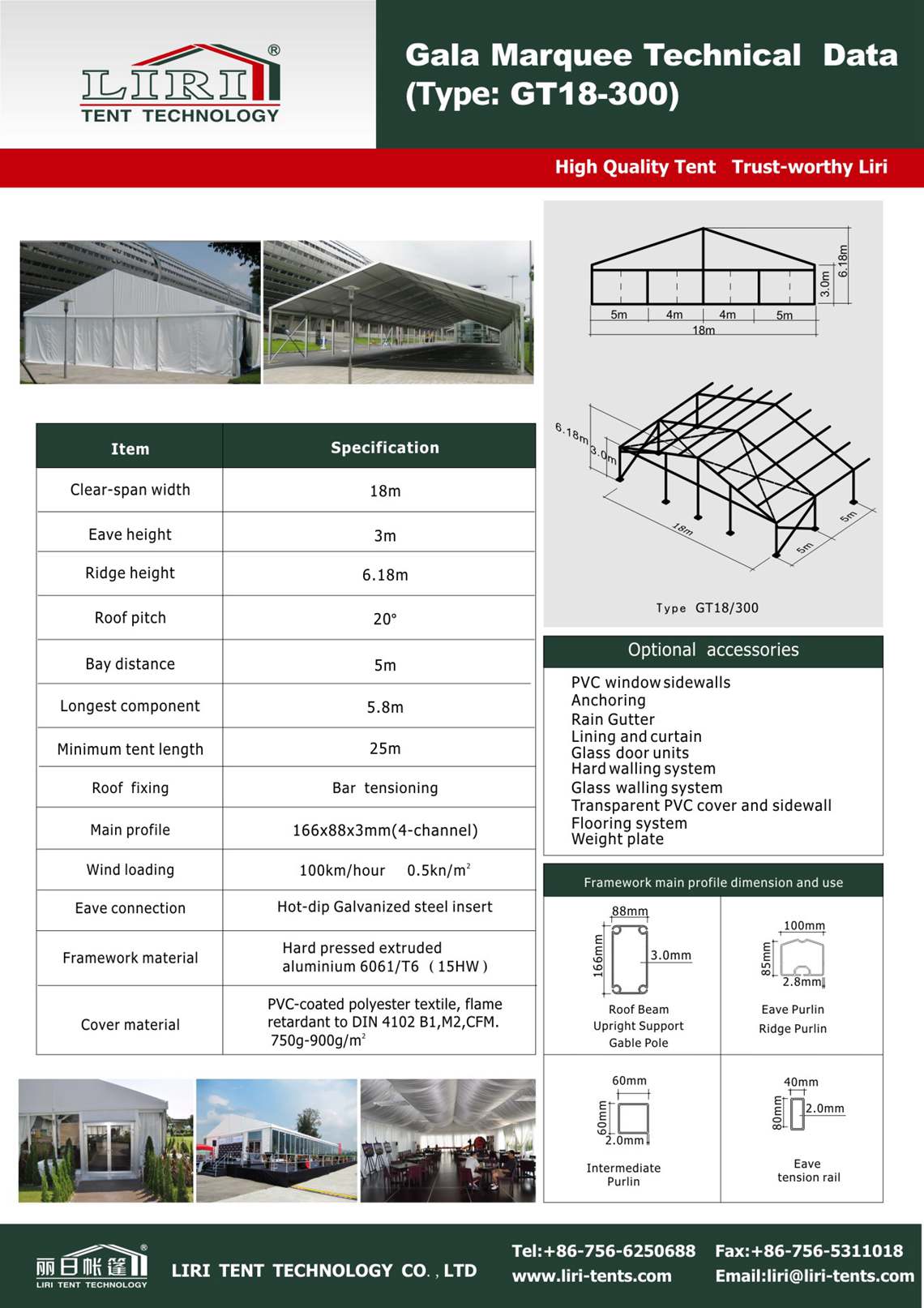

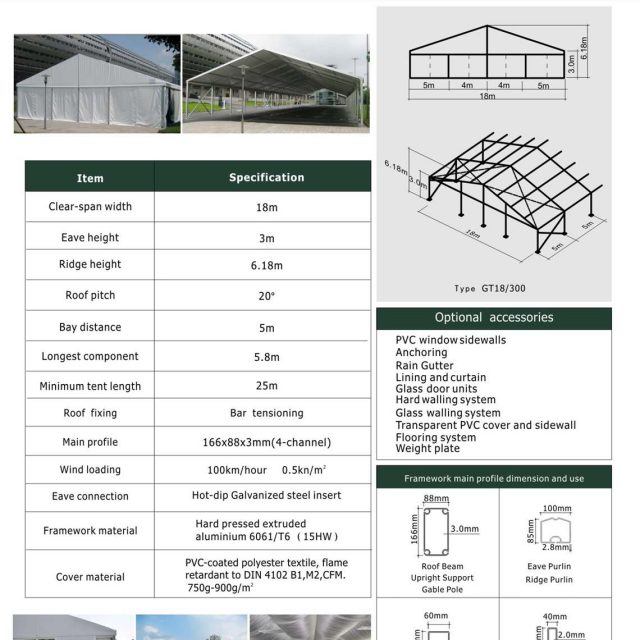

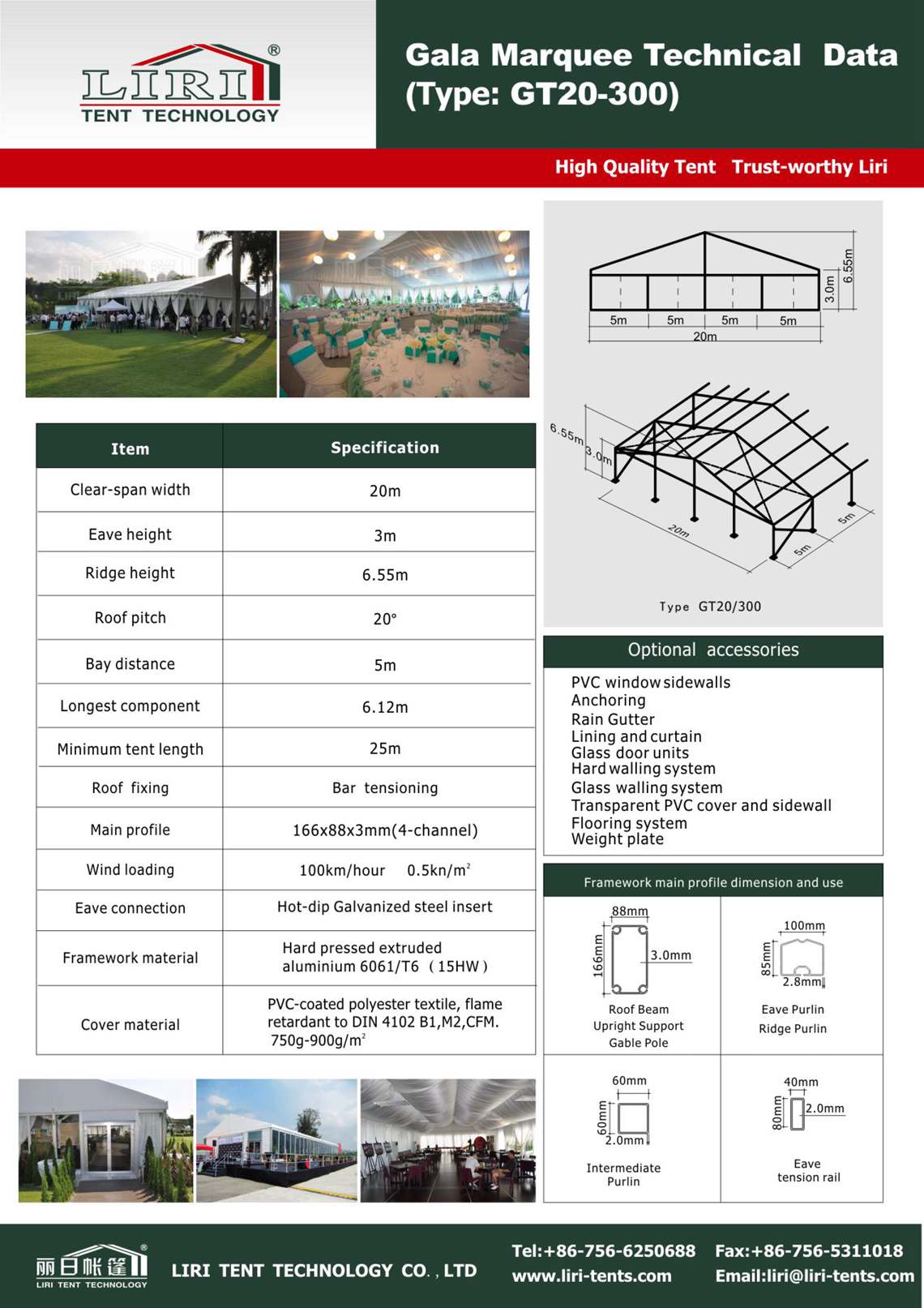

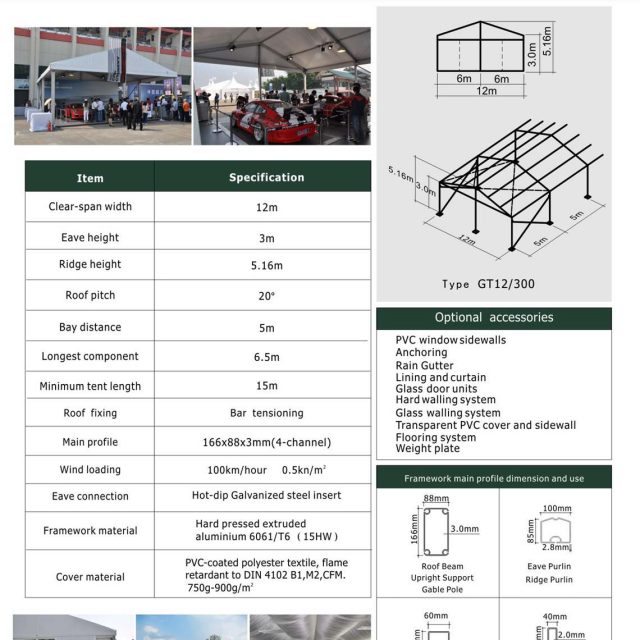

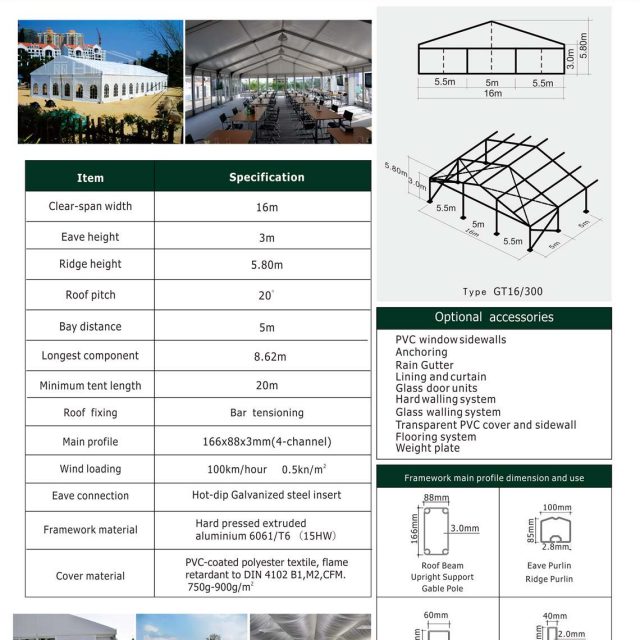

Largeur de portée Hauteur de l'avant-toit Hauteur du faîte Distance entre travées Profil principal 10 m 3 m 4,85 m 5 m 166x88x3mm (4 - channel) 12 m 3 m 5,16 m 5 m 166x88x3mm (4 - channel) 15 m 3 m 5.64m 5 m 166x88x3mm (4 - channel) 16 m 3 m 5.80m 5 m 166x88x3mm (4 - channel) 18 m 3 m 6.18m 5 m 166x88x3mm (4 - channel) 20 m 3 m 6.55m 5 m 166x88x3mm (4 - channel) - Dessin en 3D
