PVC Geodesic Dome Tent
- Informations générales
PVC geodesic dome tent is our most popular tents. Over the years, geodesic dome tents have been popular in the domestic market for many types of projects such as large-scale exhibitions, music festivals, parties and other activities. Therefore, LIRI Tent takes high-tech on R&D innovation and optimization of each geodesic dome tent.
PVC geodesic dome tent from LIRI is available on span width 3m to 60m, which can be applied on the different scale of activities. Besides, LIRI can offer different design for tent rooftop. Nowadays, Liri Tent has designed 5 membrane options for our clients:

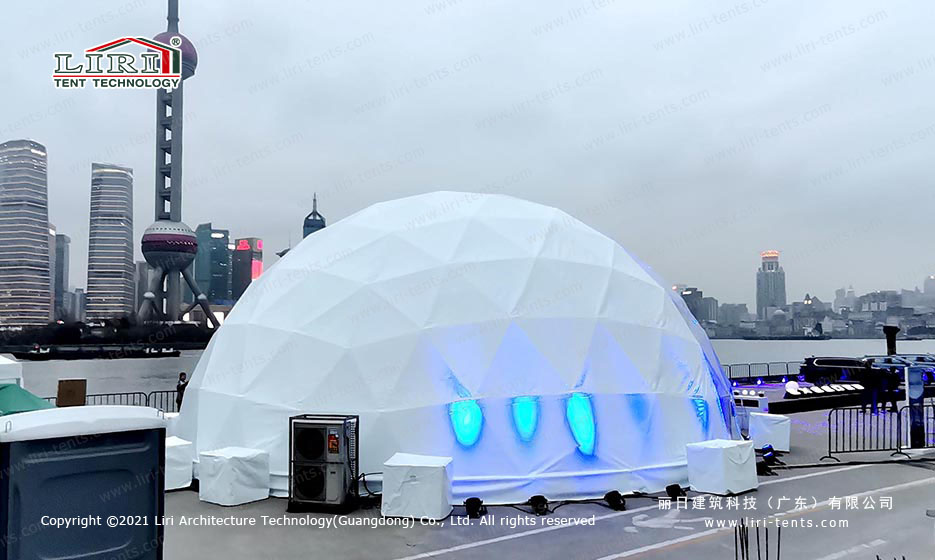

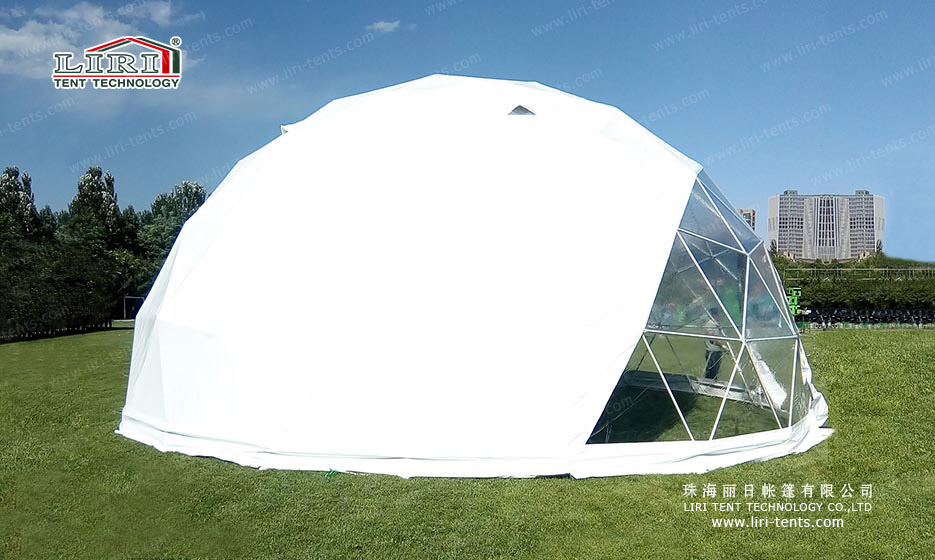

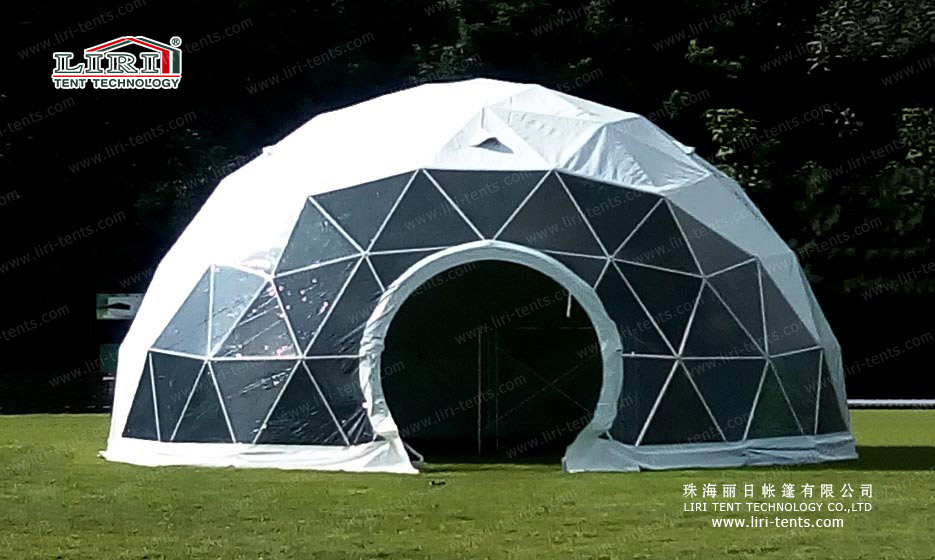

Transparent front: white, opaque PVC fabric with detachable, exchangeable clear, transparent front part, our most versatile solution.
Blackout: white, opaque PVC fabric with detachable, exchangeable white, opaque front part, ideal for darkening out the interior.

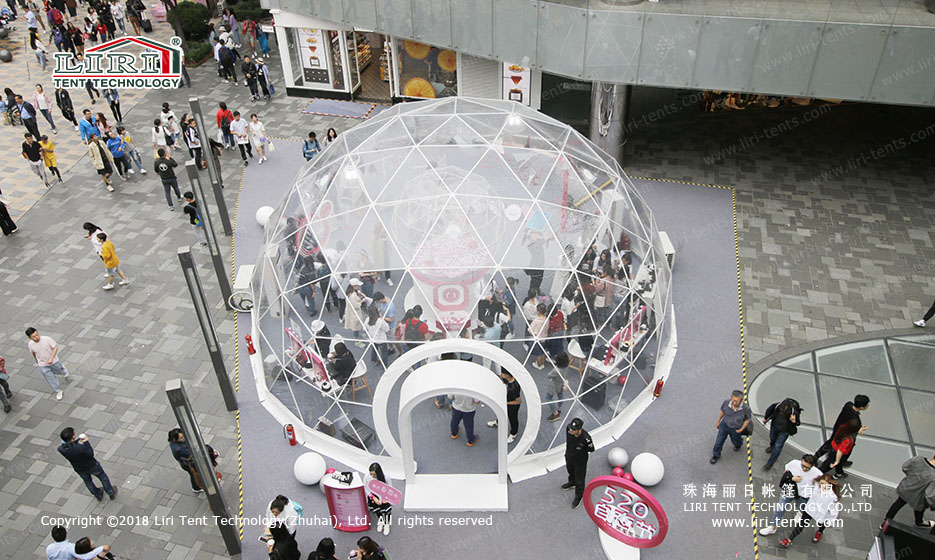

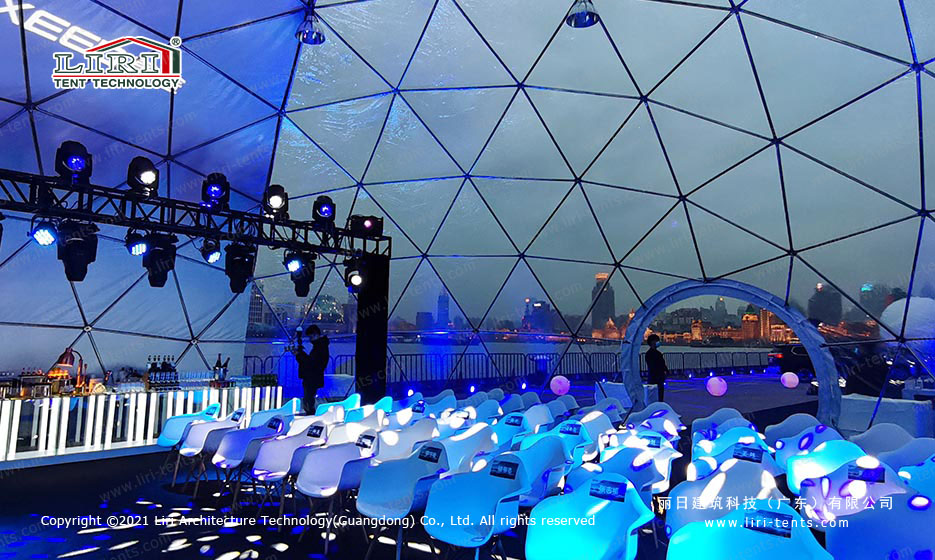

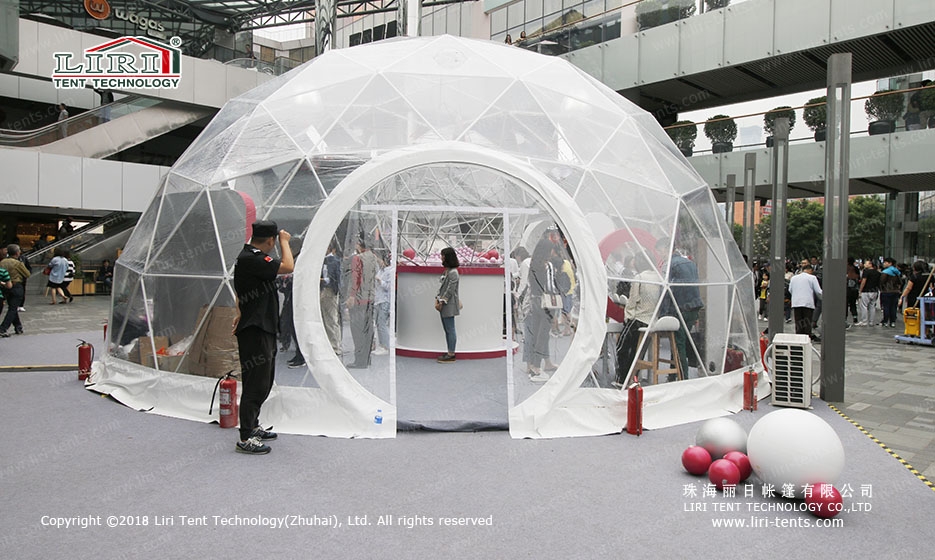

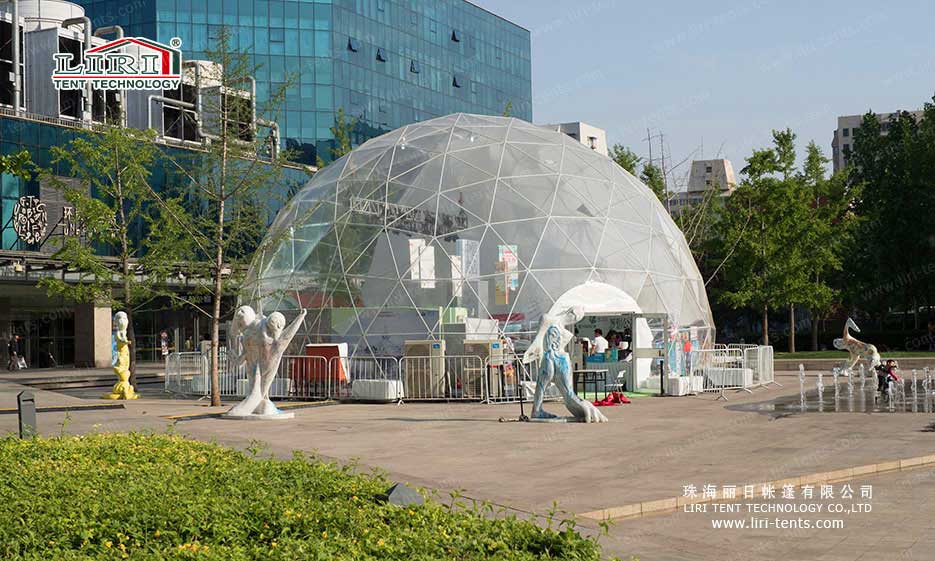

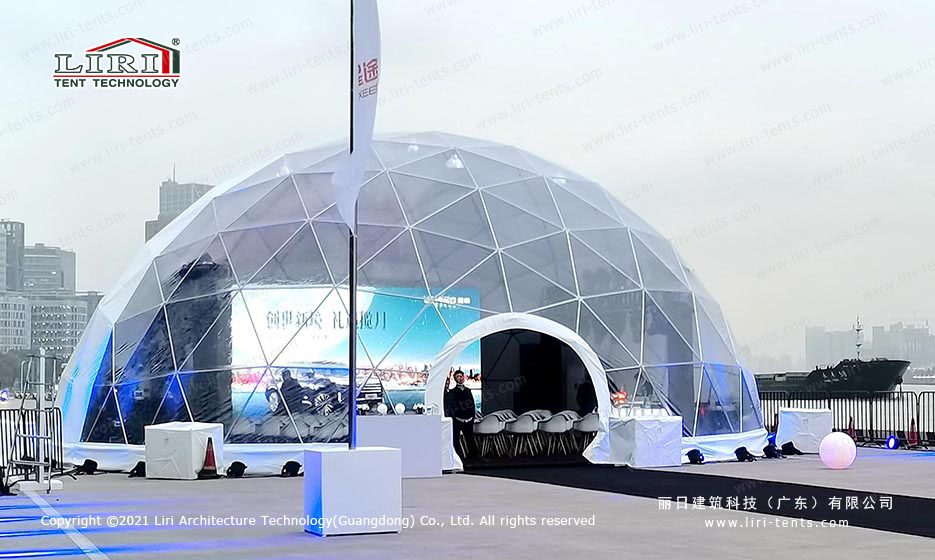

Transparent membrane: Completely transparent PVC cover, ideal for night events, giving you the possibility to create magical light effects.
Branded membrane: Fully color printed fabric or printed detachable front part, ideal to put your brand’s message across.
Open dome: a unique 2-in-1 solution that combines the classic geodesic dome structure with a completely innovative mobile stage system.
Opaque PVC fabric can be replaced with non-opaque, single layer cover, which is perfect to create lighting effects visible from outdoor.
PVC geodesic dome tent is made of high-strength Q235 steel pipe, with a solid design, removable and reusable. The appearance is stylish but not obvious, giving a sense of understated simplicity. Tent structure is anti-UV, rot proof, moldy proof, anti-aging, wind loading, waterproof and flame-retardant. They all have relevant certificates. Thanks for foldable PVC fabric and disassemble framework, the volume is small and easy to transport and store. If you are interested in our products and want to know more, please contact us directly.
- Fiche technique du produit
Diamètre Hauteur sous plafond Surface au sol Volume Détails sur les montants 3 m 2,3 m
7,1 m² 12,7 m³ 20 mm 4 m 2,89 m 12,6 m² 28 m³ 20 mm 5 m 2,93 m 19,6 m² 41 m³ 20 mm 6 m 3,52 m 28,3 m² 70 m³ 20 mm 7 m 4,1 m 38,5 m² 110 m³ 26 mm 8 m 4 m 50,2 m² 134 m³ 26 mm 9 m 4,5 m 63,6 m² 191 m³ 26 mm 10 m 5 m 78,5 m² 262 m³ 26 mm 11 m 5,5 m 95 m² 348 m³ 26 mm 12 m 6 m 113 m² 452 m³ 33 mm 13 m 5,82 m 132,7 m² 545 m³ 33 mm 14 m 6,27 m 153,9 m² 685 m³ 33 mm 15 m
6,72 m 176,6 m² 845 m³ 33 mm 16 m 7,16 m 201 m² 1 030 m³ 33 mm 17 m 8,5 m 226,9 m² 1 285 m³ 33 mm 18 m 9 m 254,3 m² 1 525 m³ 33 mm 19 m 9,5 m 283,4 m² 1 795 m³ 33 mm 20 m 10 m 314 m² 2 090 m³ 38 mm 21 m 10,5 m 346,2 m² 2 420 m³ 38 mm 22 m
11 m 379,9 m² 2 785 m³ 38 mm 23 m 11,5 m 415,3 m² 3 180 m³ 38 mm 24 m 12 m 452,2 m² 3 615 m³ 38 mm 25 m 12,5 m 490,6 m² 4 090 m³ 48 mm 30 m 13 m 706,5 m² 5 744 m³ 48 mm 35 m 14 m 961 m² 8 170 m³ 48 mm 40 m 15 m 1 256 m² 11 191 m³ 51 mm 45 m 18 m 1 589,6 m² 17 367 m³ 48 mm 50 m 20 m 1 962,5 m²
23 823 m³ 48 mm 55 m 22 m 2 374,6 m² 21 710 m³ 48 mm 60 m 25 m 2 826,0 m² 43 524 m³ 51 mm - Dessin en 3D
- Caractéristiques techniques

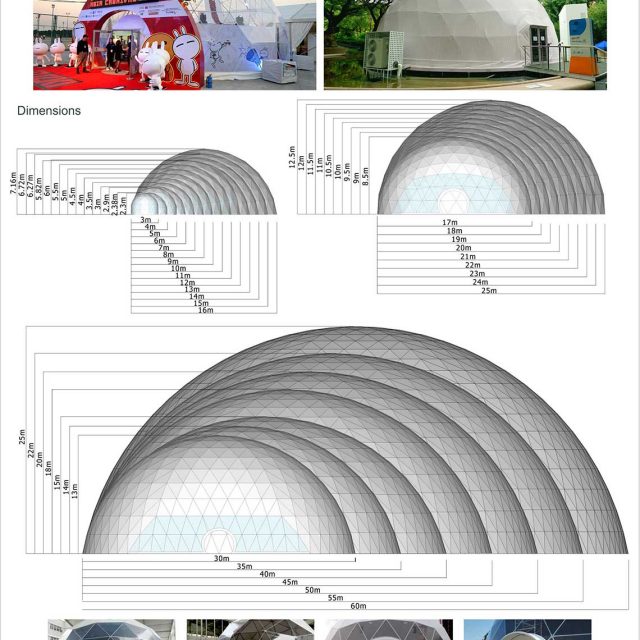

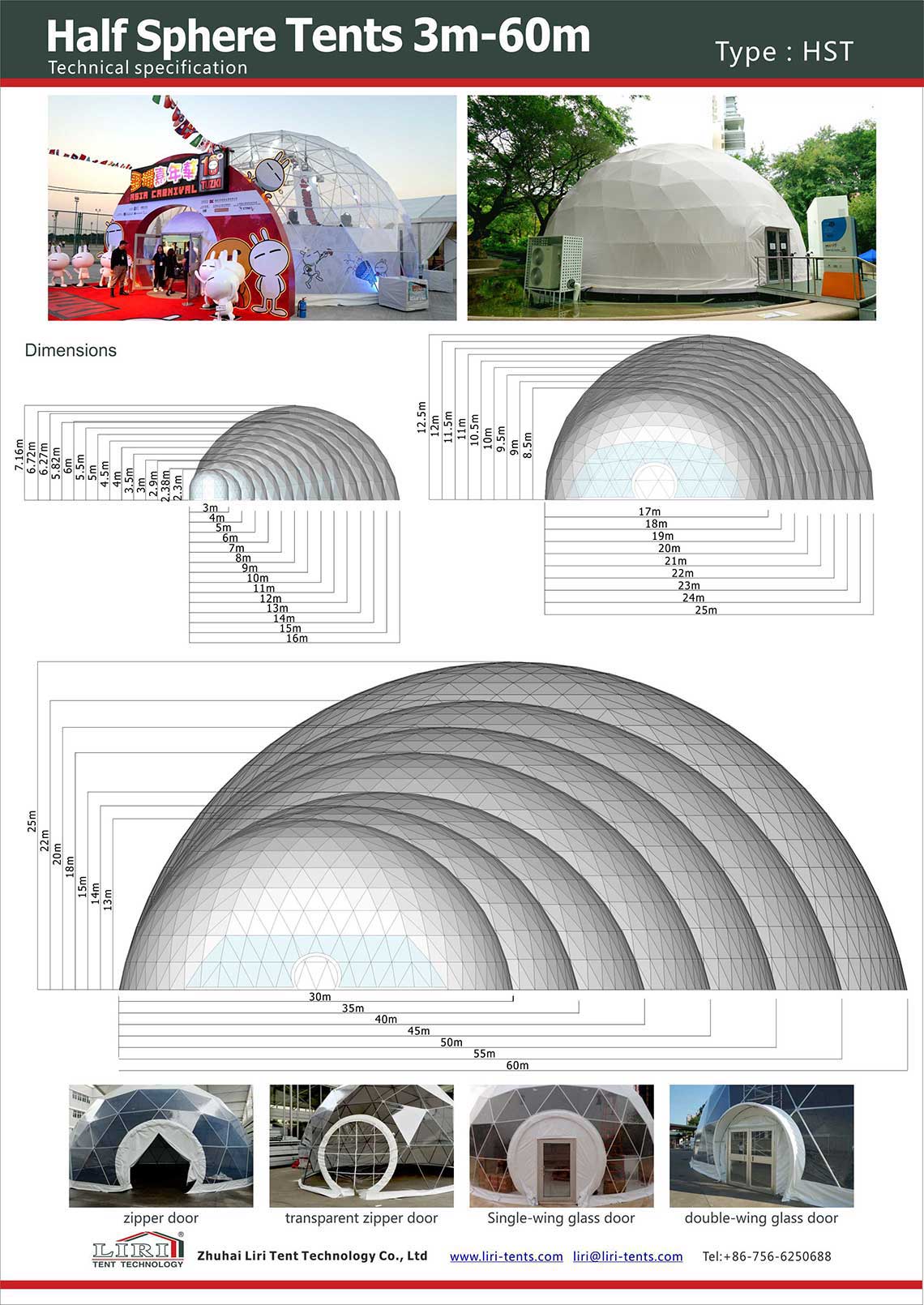

3m-60m Span Fabric Dome Tent
